窥口接线端头 CSC
发布时间：2019-03-14 浏览次数：65次 作者：023web
窥口接线端头 CSC
冷压端子,冷压端头,铜管端子
产品材质:接线端子采用优质紫铜制成,导电性良好
产品特点:采用优质亚光电镀,防锈时间大大加长,无锋利部位；配套华展端子钳即可压紧电线,接线美观,
国际认证:欧盟RoHS环保认证,欧洲CE认证.
产品特性:品质优良,压紧后不断裂松开,-40度耐热至150度正常使用.
使用方法:将电线剥开外皮,穿入端子后铜管
型号

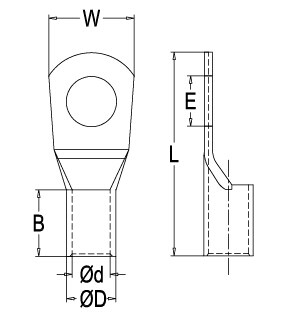

Item No. | 尺寸 DIMENSION |
E | ΦD | Φd | W | B | L |
| CSC1.5-4 | 4.2 | 3.3 | 1.8 | 8.0 | 5.0 | 16.0 |
| CSC1.5-5 | 5.2 | 3.3 | 1.8 | 10.0 | 5.0 | 17.0 |
| CSC1.5-6 | 6.5 | 3.3 | 1.8 | 10.0 | 5.0 | 18.0 |
| CSC2.5-4 | 4.2 | 3.6 | 2.4 | 8.0 | 7.0 | 18.0 |
| CSC2.5-5 | 5.2 | 3.6 | 2.4 | 10.0 | 7.0 | 20.0 |
| CSC2.5-6 | 6.5 | 3.6 | 2.4 | 10.0 | 7.0 | 20.0 |
| CSC2.5-8 | 8.4 | 3.6 | 2.4 | 12.5 | 7.0 | 23.0 |
| CSC4-4 | 4.2 | 4.4 | 3.1 | 10.0 | 7.0 | 20.0 |
| CSC4-5 | 5.2 | 4.4 | 3.1 | 10.0 | 7.0 | 20.0 |
| CSC4-6 | 6.5 | 4.4 | 3.1 | 10.0 | 7.0 | 20.0 |
| CSC4-8 | 8.4 | 4.4 | 3.1 | 12.5 | 7.0 | 23.0 |
| CSC6-4 | 4.2 | 5.1 | 3.8 | 10.0 | 9.0 | 23.0 |
| CSC6-5 | 5.2 | 5.1 | 3.8 | 10.0 | 9.0 | 24.0 |
| CSC6-6 | 6.5 | 5.1 | 3.8 | 12.0 | 9.0 | 24.0 |
| CSC6-8 | 8.4 | 5.1 | 3.8 | 12.5 | 9.0 | 26.0 |
| CSC6-10 | 10.5 | 5.9 | 4.0 | 15.0 | 9.0 | 28.0 |
| CSC10-5 | 5.2 | 5.8 | 4.5 | 12.0 | 9.0 | 25.0 |
| CSC10-6 | 6.5 | 5.8 | 4.5 | 12.0 | 9.0 | 25.0 |
| CSC10-8 | 8.4 | 5.8 | 4.5 | 12.5 | 9.0 | 27.0 |
| CSC10-10 | 10.5 | 5.8 | 4.5 | 15.0 | 9.0 | 29.0 |
| CSC10-12 | 13.0 | 5.8 | 4.5 | 17.0 | 9.0 | 31.0 |
| CSC16-5 | 5.2 | 6.6 | 5.4 | 12.0 | 12.0 | 30.0 |
| CSC16-6 | 6.5 | 6.6 | 5.4 | 12.0 | 12.0 | 30.0 |
| CSC16-8 | 8.4 | 6.6 | 5.4 | 12.5 | 12.0 | 30.0 |
| CSC16-10 | 10.5 | 6.6 | 5.4 | 16.0 | 12.0 | 33.0 |
| CSC16-12 | 13.0 | 6.6 | 5.4 | 17.0 | 12.0 | 35.0 |
| CSC25-5 | 5.2 | 8.3 | 6.8 | 13.0 | 12.0 | 33.0 |
| CSC25-6 | 6.5 | 8.3 | 6.8 | 13.0 | 12.0 | 33.0 |
| CSC25-8 | 8.4 | 8.3 | 6.8 | 15.0 | 12.0 | 33.0 |
| CSC25-10 | 10.5 | 8.3 | 6.8 | 18.0 | 12.0 | 34.0 |
| CSC25-12 | 13.0 | 8.3 | 6.8 | 18.0 | 12.0 | 35.0 |
| CSC25-14 | 15.0 | 8.3 | 6.8 | 20.0 | 12.0 | 38.0 |
| CSC35-5 | 5.2 | 10.0 | 8.2 | 16.0 | 14.0 | 38.0 |
| CSC35-6 | 6.5 | 10.0 | 8.2 | 16.0 | 14.0 | 38.0 |
| CSC35-8 | 8.4 | 10.0 | 8.2 | 16.0 | 14.0 | 38.0 |
| CSC35-10 | 10.5 | 10.0 | 8.2 | 18.0 | 14.0 | 39.0 |
| CSC35-12 | 13.0 | 11.6 | 8.2 | 19.0 | 14.0 | 40.5 |
| CSC35-14 | 15.0 | 11.6 | 8.2 | 20.0 | 14.0 | 42.0 |
| CSC50-6 | 6.5 | 11.6 | 9.5 | 17.8 | 16.0 | 45.0 |
| CSC50-8 | 8.4 | 11.6 | 9.5 | 17.8 | 16.0 | 45.0 |
| CSC50-10 | 10.5 | 11.6 | 9.5 | 17.8 | 16.0 | 45.0 |
| CSC50-12 | 13.0 | 11.6 | 9.5 | 20.0 | 16.0 | 45.0 |
| CSC50-14 | 15.0 | 11.6 | 9.5 | 22.0 | 16.0 | 46.0 |
| CSC50-16 | 17.0 | 11.6 | 9.5 | 24.0 | 16.0 | 47.0 |
| CSC70-8 | 8.4 | 13.8 | 11.2 | 20.4 | 20.0 | 52.0 |
| CSC70-10 | 10.5 | 13.8 | 11.2 | 20.4 | 20.0 | 52.0 |
| CSC70-12 | 13.0 | 13.8 | 11.2 | 20.4 | 20.0 | 52.0 |
| CSC70-14 | 15.0 | 13.8 | 11.2 | 20.4 | 20.0 | 52.0 |
| CSC70-16 | 17.0 | 13.8 | 11.2 | 25.0 | 20.0 | 53.0 |
| CSC95-8 | 8.4 | 16.4 | 13.5 | 24.0 | 23.0 | 58.0 |
| CSC95-10 | 10.5 | 16.4 | 13.5 | 24.0 | 23.0 | 58.0 |
| CSC95-12 | 13.0 | 16.4 | 13.5 | 24.0 | 23.0 | 58.0 |
| CSC95-14 | 15.0 | 16.4 | 13.5 | 24.0 | 23.0 | 58.0 |
| CSC95-16 | 17.0 | 16.4 | 13.5 | 24.0 | 23.0 | 58.0 |
| CSC120-8 | 8.4 | 18.2 | 15.0 | 27.0 | 22.0 | 63.0 |
| CSC120-10 | 10.5 | 18.2 | 15.0 | 27.0 | 22.0 | 63.0 |
| CSC120-12 | 13.0 | 18.2 | 15.0 | 27.0 | 22.0 | 63.0 |
| CSC120-14 | 15.0 | 18.2 | 15.0 | 27.0 | 22.0 | 63.0 |
| CSC120-16 | 17.0 | 18.2 | 15.0 | 27.0 | 22.0 | 63.0 |
| CSC120-20 | 21.0 | 18.2 | 15.0 | 27.0 | 22.0 | 63.0 |
| CSC150-8 | 8.4 | 19.9 | 16.5 | 29.5 | 26.0 | 70.0 |
| CSC150-10 | 10.5 | 19.9 | 16.5 | 29.5 | 26.0 | 70.0 |
| CSC150-12 | 13.0 | 19.9 | 16.5 | 29.5 | 26.0 | 70.0 |
| CSC150-14 | 15.0 | 19.9 | 16.5 | 29.5 | 26.0 | 70.0 |
| CSC150-16 | 17.0 | 19.9 | 16.5 | 29.5 | 26.0 | 70.0 |
| CSC150-20 | 21.0 | 19.9 | 16.5 | 29.5 | 26.0 | 70.0 |
| CSC185-10 | 10.5 | 22.1 | 18.5 | 32.5 | 32.0 | 75.0 |
| CSC185-12 | 13.0 | 22.1 | 18.5 | 32.5 | 32.0 | 75.0 |
| CSC185-14 | 15.0 | 22.1 | 18.5 | 32.5 | 32.0 | 75.0 |
| CSC185-16 | 17.0 | 22.1 | 18.5 | 32.5 | 32.0 | 75.0 |
| CSC185-20 | 21.0 | 22.1 | 18.5 | 32.5 | 32.0 | 75.0 |
| CSC240-10 | 10.5 | 25.5 | 21.0 | 37.0 | 38.0 | 90.0 |
| CSC240-12 | 13.0 | 25.0 | 21.0 | 37.0 | 38.0 | 90.0 |
| CSC240-14 | 15.0 | 25.0 | 21.0 | 37.0 | 38.0 | 90.0 |
| CSC240-16 | 17.0 | 25.0 | 21.0 | 37.0 | 38.0 | 90.0 |
| CSC240-20 | 21.0 | 25.0 | 21.0 | 37.0 | 38.0 | 90.0 |
| CSC300-10 | 10.5 | 28.2 | 23.5 | 41.5 | 42.0 | 98.0 |
| CSC300-12 | 13.0 | 28.2 | 23.5 | 41.5 | 42.0 | 98.0 |
| CSC300-14 | 15.0 | 28.2 | 23.5 | 41.5 | 42.0 | 98.0 |
| CSC300-16 | 17.0 | 28.2 | 23.5 | 43.0 | 42.0 | 98.0 |
| CSC300-20 | 21.0 | 28.2 | 23.5 | 43.0 | 42.0 | 98.0 |
| CSC400-10 | 10.5 | 34.3 | 28.5 | 50.5 | 44.0 | 110.0 |
| CSC400-12 | 13.0 | 34.3 | 28.5 | 50.5 | 44.0 | 110.0 |
| CSC400-14 | 15.0 | 34.3 | 28.5 | 50.5 | 44.0 | 110.0 |
| CSC400-16 | 17.0 | 34.3 | 28.5 | 50.5 | 44.0 | 110.0 |
| CSC400-20 | 21.0 | 34.3 | 28.5 | 50.5 | 44.0 | 110.0 |
| CSC500-10 | 10.5 | 36.5 | 30.0 | 53.5 | 48.0 | 120.0 |
| CSC500-12 | 13.0 | 36.5 | 30.0 | 53.5 | 48.0 | 120.0 |
| CSC500-14 | 15.0 | 36.5 | 30.0 | 53.5 | 48.0 | 120.0 |
| CSC500-16 | 17.0 | 36.5 | 30.0 | 53.5 | 48.0 | 120.0 |
| CSC500-20 | 21.0 | 36.5 | 30.0 | 53.5 | 48.0 | 120.0 |
| CSC630-10 | 10.5 | 42.2 | 35.0 | 62.5 | 56.0 | 140.0 |
| CSC630-12 | 13.0 | 42.2 | 35.0 | 62.5 | 56.0 | 140.0 |
| CSC630-14 | 15.0 | 42.2 | 35.0 | 62.5 | 56.0 | 140.0 |
| CSC630-16 | 17.0 | 42.2 | 35.0 | 62.5 | 56.0 | 140.0 |
| CSC630-20 | 21.0 | 42.2 | 35.0 | 62.5 | 56.0 | 140.0
|
